Medium-Voltage Pad-Mounted Transformers

Dead-front, liquid-filled, 300–3,000 kVA, 5–34.5 kV class. Loop-feed or radial-feed. 5-year warranty, 24–36 week lead time from PO confirmation.

Sourced for client projects

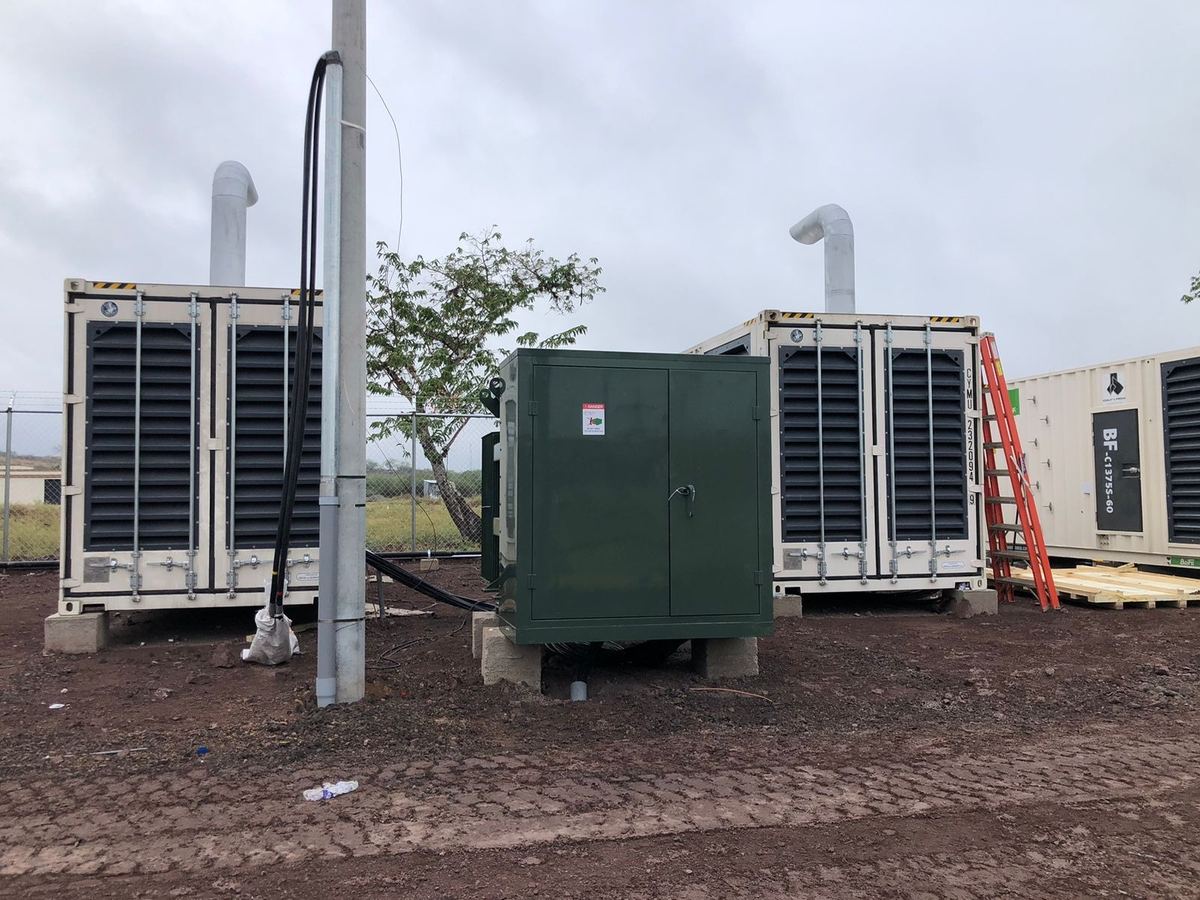

Example units — sourced to spec

Transformers sourced for client projects, procured to exact spec from our manufacturer network. Your unit is quoted to spec — not picked from a shelf.

Unit	Configuration	Specs
1,500 kVA	34.5 kV → 480Y/277 V · 3-phase pad-mount, dead-front	View details →
2,000 kVA	34.5 kV → 480Y/277 V · 3-phase pad-mount, dead-front	View details →
2,550 kVA	34.5 kV → 480Y/277 V · 3-phase pad-mount, dead-front	View details →
750 kVA	13.2 kV → 480Y/277 V · 3-phase pad-mount, dead-front	View details →
1,000 kVA	13.8 kV → 208Y/120 V · 3-phase pad-mount, dead-front	View details →

Other ratings quoted from spec — see the full 300–3,000 kVA range below. MV dry-type (core & coil) units have their own page: MV Dry-Type.

Specifications

MV Pad-Mounted ratings

Representative ratings below. Dimensions and weights are nominal and confirmed at quote. Loop-feed or radial-feed, mineral oil or FR3 fluid available on receipt of spec.

MV Pad-Mounted

kVA	Voltage Class	HV BIL	Enclosure	Dims (W×D×H)	Weight	Standard
300	15 kV	95 kV BIL	Pad-mounted	48" × 44" × 60"	2,400 lbs	IEEE C57.12.26
500	15 kV	95 kV BIL	Pad-mounted	52" × 48" × 64"	3,200 lbs	IEEE C57.12.26
750	15 kV	95 kV BIL	Pad-mounted	56" × 52" × 68"	4,000 lbs	IEEE C57.12.26
1,000	15 kV	95 kV BIL	Pad-mounted	60" × 56" × 72"	5,000 lbs	IEEE C57.12.26
1,500	25 kV	125 kV BIL	Pad-mounted	66" × 62" × 76"	6,500 lbs	IEEE C57.12.26
2,000	25 kV	125 kV BIL	Pad-mounted	72" × 66" × 80"	8,000 lbs	IEEE C57.12.26
2,500	34.5 kV	150 kV BIL	Pad-mounted	78" × 70" × 84"	9,500 lbs	IEEE C57.12.28
3,000	34.5 kV	150 kV BIL	Pad-mounted	84" × 74" × 88"	11,000 lbs	IEEE C57.12.28

Dead-front, liquid-filled. Loop-feed or radial-feed. Mineral oil or FR3 fluid. Additional sizes and voltage classes available on receipt of spec.

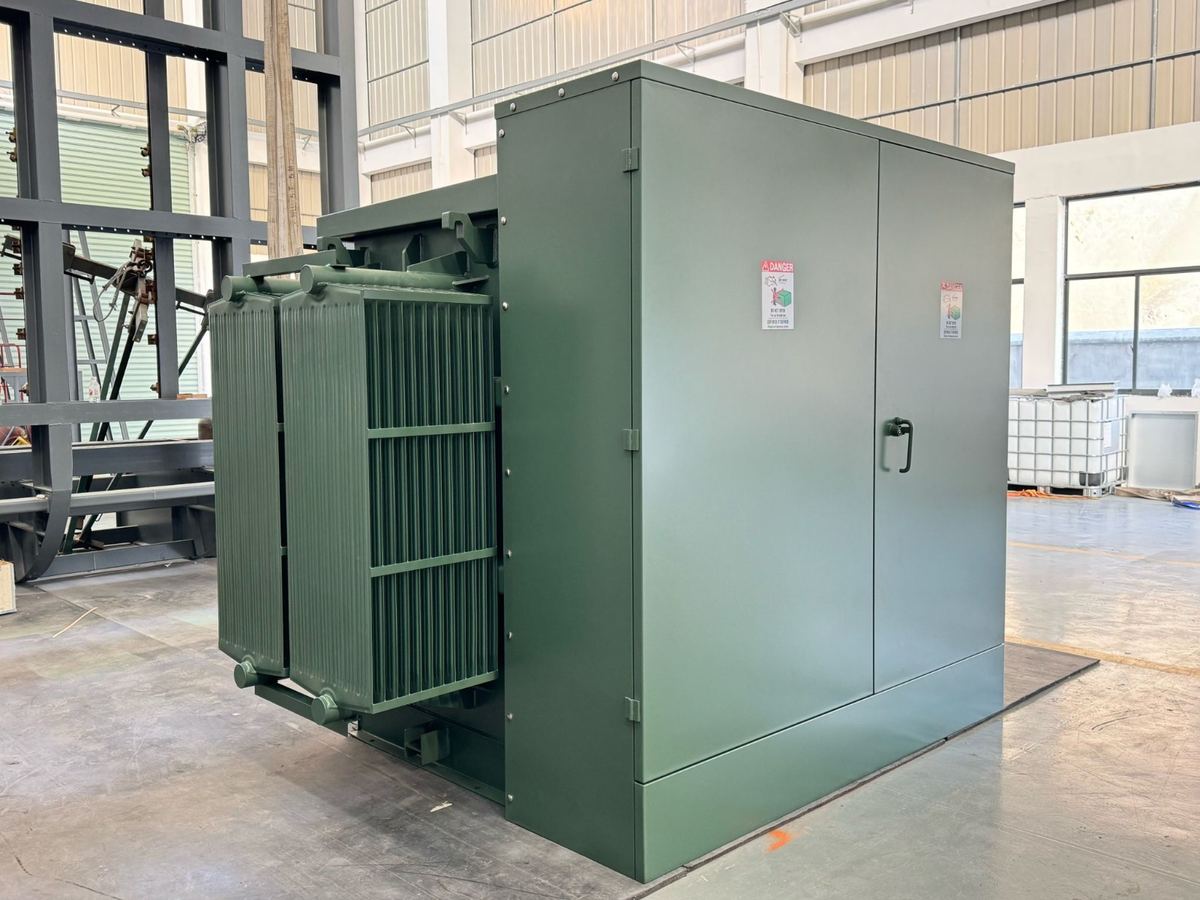

Construction

Design & build

Type

Dead-front, liquid-filled, pad-mounted

Configurations

Loop-feed or radial-feed

Fluid

Mineral oil or FR3 (less flammable)

Voltage Class

5 kV – 34.5 kV

BIL

95 kV – 150 kV

Standard

IEEE C57.12.26 / C57.12.28

Switching

Load-break bushings, oil-immersed switches

Accessories

Bushing wells, arresters, parking stands, drain valves

FAQ

Common questions

What is the lead time on MV pad-mounted transformers?

24–36 weeks from PO confirmation. Longer lead times apply to higher voltage classes and custom configurations.

What fluid options are available?

Mineral oil and FR3 (less-flammable fluid) are both available. Specify FR3 if the installation requires reduced fire risk or if local code requires it.

Do you support loop-feed and radial-feed configurations?

Yes. Both loop-feed (two-bushing primary) and radial-feed (one-bushing primary) are available. Specify your utility's required configuration at quote.

Are MV units UL listed?

Yes. All pad-mounted units are UL/cUL listed. IEEE C57.12.26 and C57.12.28 compliant. File number provided on request.

What warranty applies to pad-mounted transformers?

5 years from date of shipment covering windings, core, tank, and terminals. Full terms in our Terms & Conditions of Sale.

Send your spec for a firm quote within one business day

[email protected] · 718-973-0281

Include: kVA rating, primary and secondary voltage, enclosure type, quantity.

Budgetary price schedule available on request.

Beyond transformers

Transformers are our main focus, but we are able to source other electrical equipment to fulfill project needs. Among these include motors, generators, and various types of switchgear. Sourced through the same supply channels, one PO, and the same point of contact ensures consistency and reliability across the board.
